Run a Print in VertiGIS Inline

To run a print in VertiGIS Inline, the steps are as follows:

Create a Print Template for Inline

To create a print template for Inline:

  1. Create a new print template for your Inline view.

  2. Add a parameter for the print template to take inputs at run time.

  3. Add a Picture Box control where you want your Inline view to go.

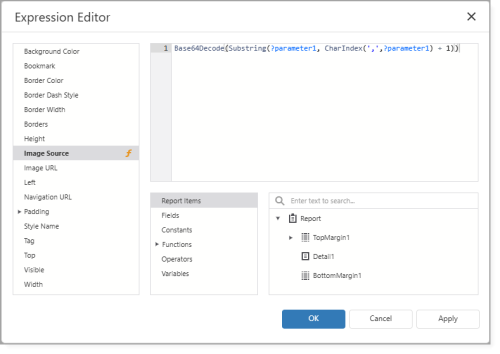

  4. Open the Expression Editor ().

  5. Configure the Image Source to include the function below, replacing "parameter1" with the name you assigned the parameter in step 2.

    Base64Decode(Substring(?parameter1, CharIndex(',',?parameter1) + 1))

  6. Click OK.

  7. Save the template.

Add the Print Template to an Inline View

After you create a print template for Inline, you must add the print template to an Inline view.

To add the print template to an Inline view:

  1. Open a view in the Inline Designer.

  2. Go to Viewer Options > Print Options.

  3. Click Add Print Template.

  4. Select the Inline print template you created.

  5. Click Select.

    You can now run a print in Inline.

Run a Print in Inline

After you add the print template to an Inline view, you can run the Print action.

To run a print in Inline:

  1. Open the Inline view.

  2. Populate the Route and the range (Start and End).

  3. Click the Tools menu (the three-dot menu).

  4. Click Print.

    The Print Inline window opens with the settings described below.

    Field

    Description
    Template Shows the selected Inline print template.
    Scale Shows the current scale of the Inline view.
    Rotation Set the angle (in degrees) at which you want to print the main map image.
    Inline Parameter Select the parameter you configured in the print template. This is where the Inline view will show when printed.

  5. Click Submit.

    A notification appears when the print job is complete.

  6. Click the download link to open the PDF of the Inline view.
