Architecture

Prev Top Next More

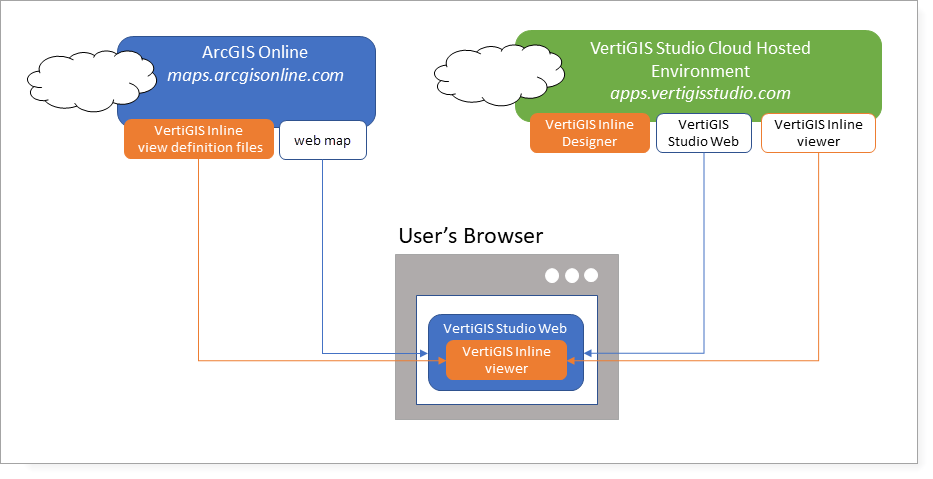

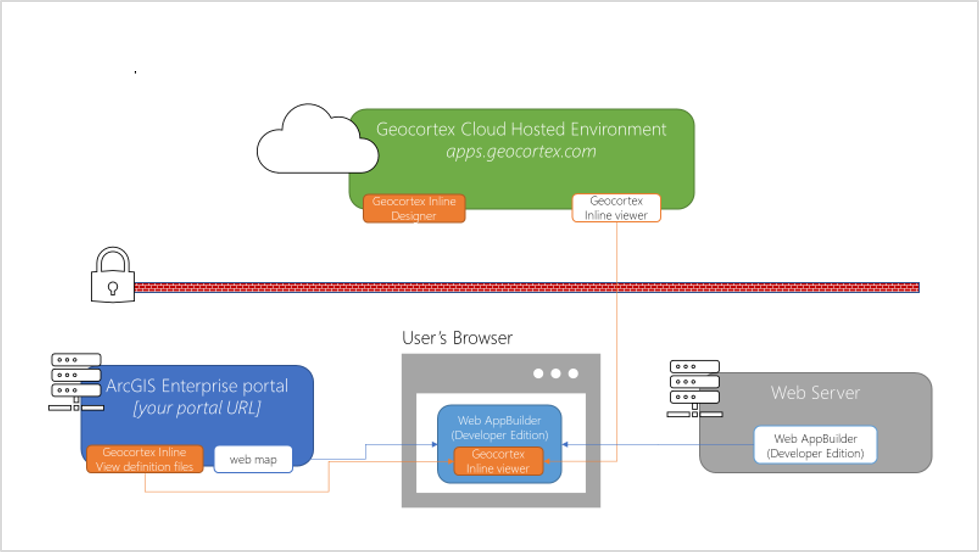

The VertiGIS  Inline application includes the following:

•VertiGIS Inline: an HTML and JavaScript library and user interface that is downloaded to the user’s browser when they open an Inline view.

•VertiGIS Inline view definition file: a JSON configuration file that contains the web map configuration, and the band and chart configuration for the Inline views.

•Web map configuration: a JSON configuration file (included in the view definition file), that references the data sources for Inline and its map component.

•Web map application: an HTML and JavaScript web application used for visualizing and interacting with Inline and its map component. For details on supported applications, see Requirements.

•VertiGIS Inline Designer: an HTML and JavaScript web interface used to create a custom view definition file.

You do not need to install anything to use Inline or the Inline Designer. Both run in the browser and are hosted in the VertiGIS Studio cloud environment at apps.vertigisstudio.com.
