After you set up your Studio Search app, you must configure the Studio Workflow template to enable the integration between Studio Search and Studio Web.

To link the Search workflow to your Studio Web App:

1.Open your app in Studio Search Designer.

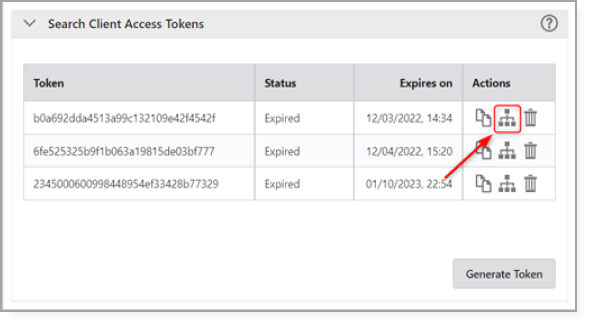

2.Navigate to the App Configuration page and expand the Search Client Access Token tab.

3.Click the Copy Configuration button.

4.Go to VertiGIS Studio Web and open your app.

5.Select the I want to component.

6.Click +Add Menu Item to open the Select Command window.

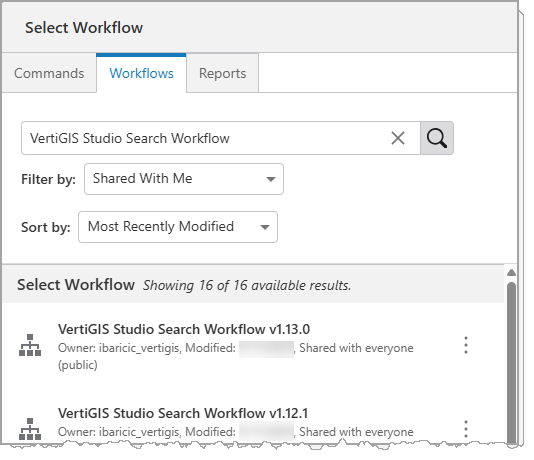

7.In the Workflows tab, search for "VertiGIS Studio Search Workflow".

8.Select "Shared with Me" in the Filter by dropdown.

9.Choose the latest version available.

10.Click Select.

The workflow is now linked with your Studio Web app.

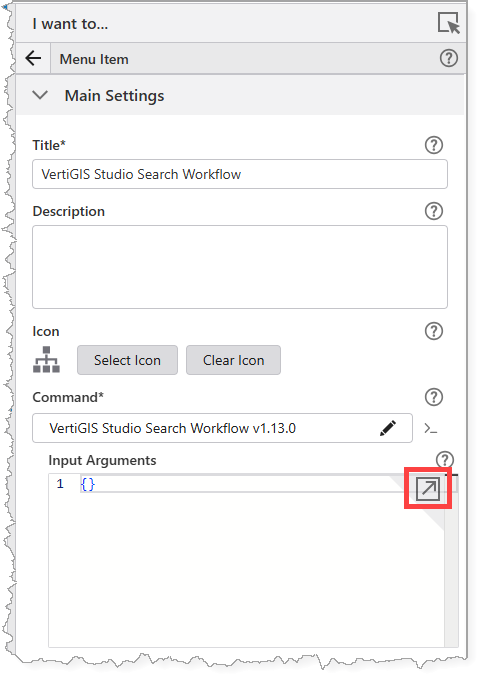

11.In the Menu Items, select the the workflow you just linked.

12.Open the Input Arguments Editor.

If there are curly brackets in the field, you must delete them.

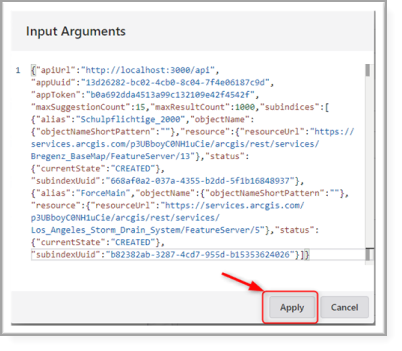

13.Paste the copied configuration items in the Input Arguments. It should look similar to the figure below.

14.Click Apply.

The workflow will now use the specified Studio Search app for all searches.

You can now go to VertiGIS Studio Web to customize the Search component.
