The Printing component is linked to the Print command. You must add the Printing component to the app for the Print command to work.

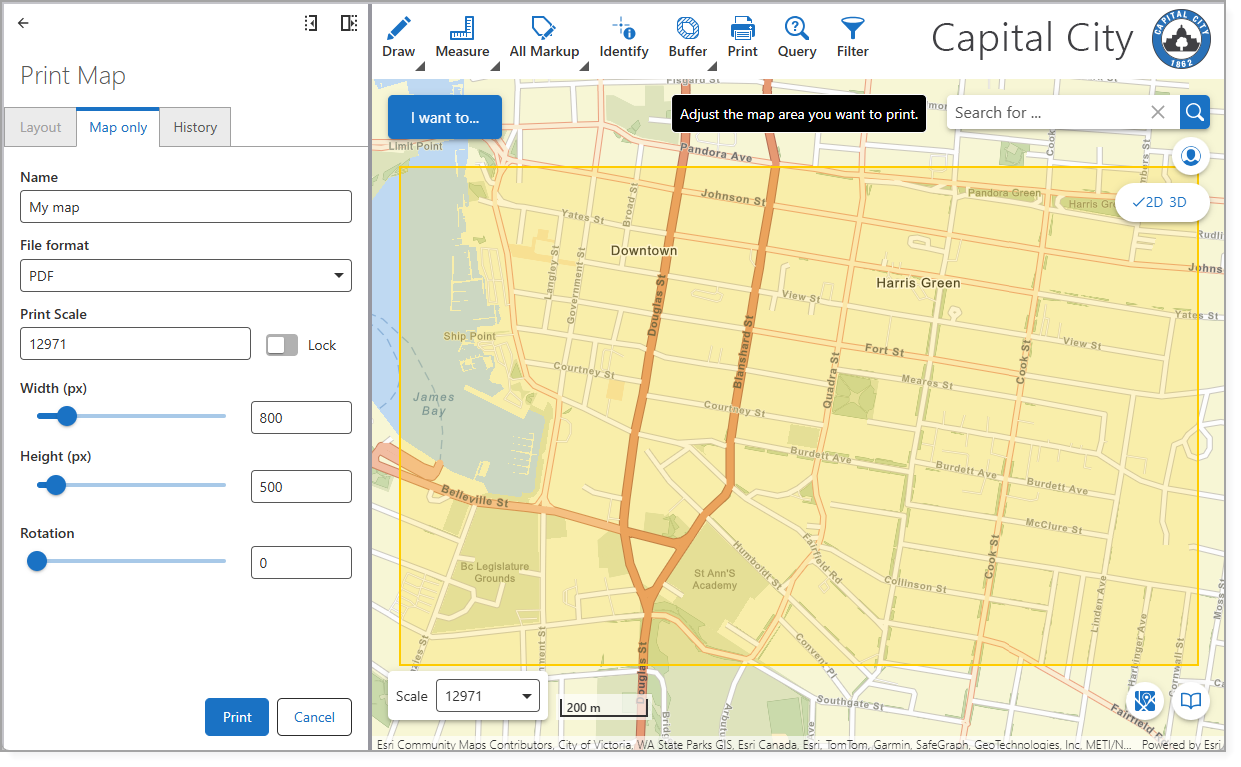

When your user selects the Print command, the component shows the map area to print, which they can click and drag to adjust. See Run a Print a VertiGIS Studio Web App for more information.
Certain Printing settings are available depending on which of the following print engines you are using:
•Chromium browser-based print engine
•ArcGIS Enterprise-based print engine
You can configure the print settings available when your user prints the map, including the print template settings, spatial reference grids, and resolutions the user can select. The user is also presented with any input parameters the print template may have.
See also: Printing Service.
Standard Settings
Main Settings
Field |
Description |
|---|---|
Title |
Type a title to display for the component. This title is used both in Web and Designer. |
Icon |
To select an icon to represent the component, click Select Icon, click the desired icon, and click OK. To remove the icon, click Clear Icon. |
Resolutions
Field |
Description |
|---|---|
DPI |
The dots per inch (DPI) resolution in which to print the map. |
Visibility Filters
Field |
Description |
|---|---|
Visible To |
Determines which users and groups can access this component. If no users or groups are specified, all users can access this component by default. The Hidden From setting overrides this setting. |
Hidden From |
Determines which users and groups are explicitly forbidden to access this component. This setting overrides the Visible To setting. |
Layout
Field |
Description |
|---|---|
Margin (px) |
The margin space around the component in pixels. |
Initially Hidden |
Specifies whether or not the component is initially hidden when the app loads. If selected, the component remains hidden unless activated, for example, by the Show command. |
Map |
The Map components this component affects. This setting cannot be modified if this component is either a subcomponent of a Map component or there is only a single Map component in the app. |
Button Style |
The style of the button. Choose either Rounded or Square. |
Chromium Browser-based Print Engine Settings
These settings are available if you are using the default Chromium browser-based print engine.
Print Templates
Field |
Description |
|---|---|
Title |
The title to display for the print template. |
Template |
The URL of the print template. |
Spatial Reference Grids
A spatial reference grid defines the coordinate system used to locate the geometry for a feature. It controls how and where features are displayed in a map or scene.
For a list of Well-Known IDS (WKIDs) and Well-Known Texts (WKTs), see Esri's Geographic Coordinate Systems or Projected Coordinate Systems.
Field |
Description |
|---|---|
Name |
The display name of the spatial reference grid. |
WKID |
The unique number assigned to a coordinate system. |
Well-Known Text |
A string that defines all necessary parameters of a coordinate system. The WKID setting overrides the Well-Known Text setting. |
ArcGIS Enterprise-based Print Engine Settings
These settings are only available after you configure the Print Service URL.
ArcGIS Pro Layouts
Field |
Description |
|---|---|
Add ArcGIS Pro Layouts |
The ArcGIS Pro layout template you want to use for printing. |
Field |
Description |
|---|---|
Enabled |

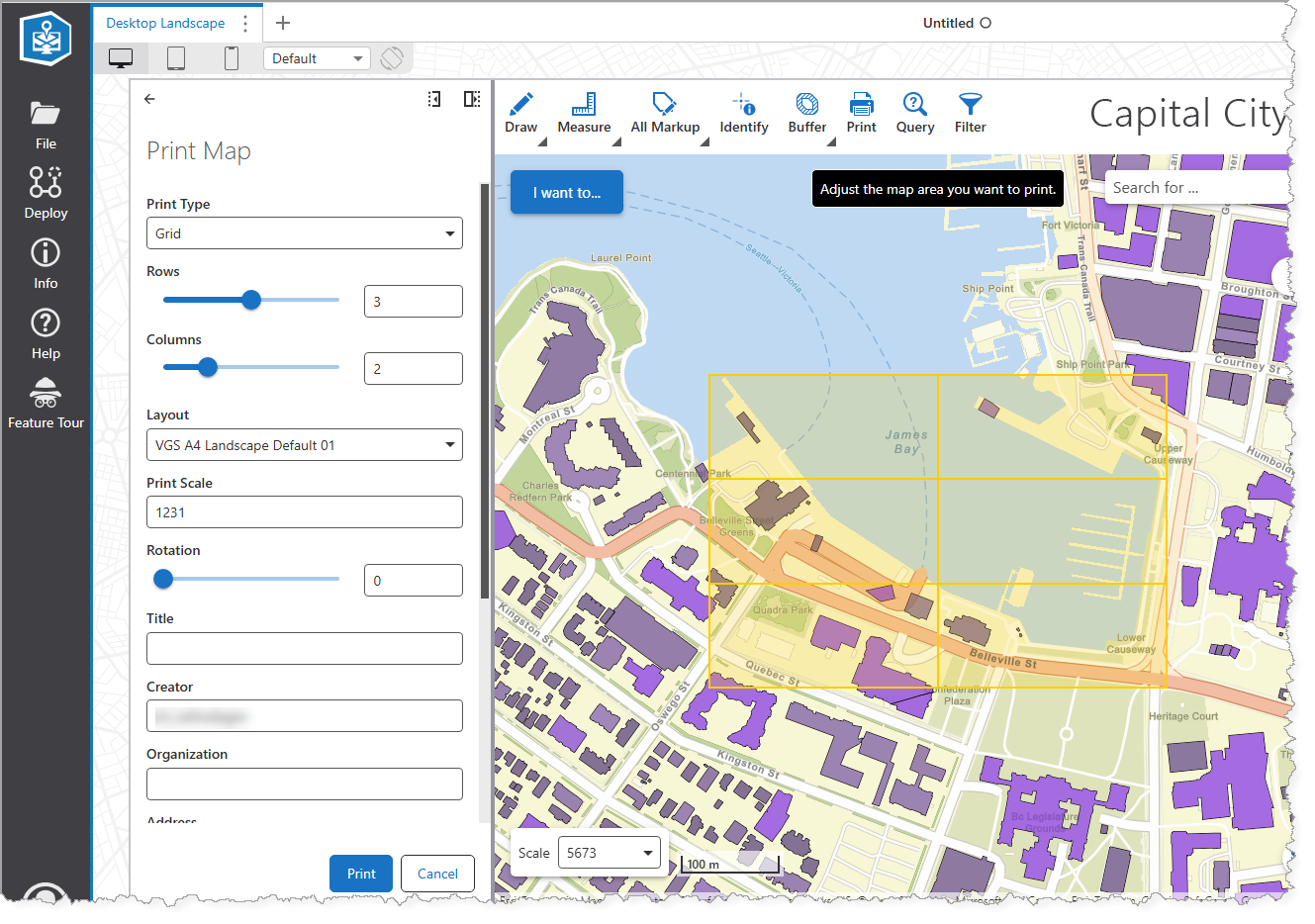

When enabled, Grid is available as a Print Type in the print form. The print area window appears in a customizable, numbered grid pattern, which improves accuracy and navigation. |
Field |
Description |
|---|---|
Enabled |

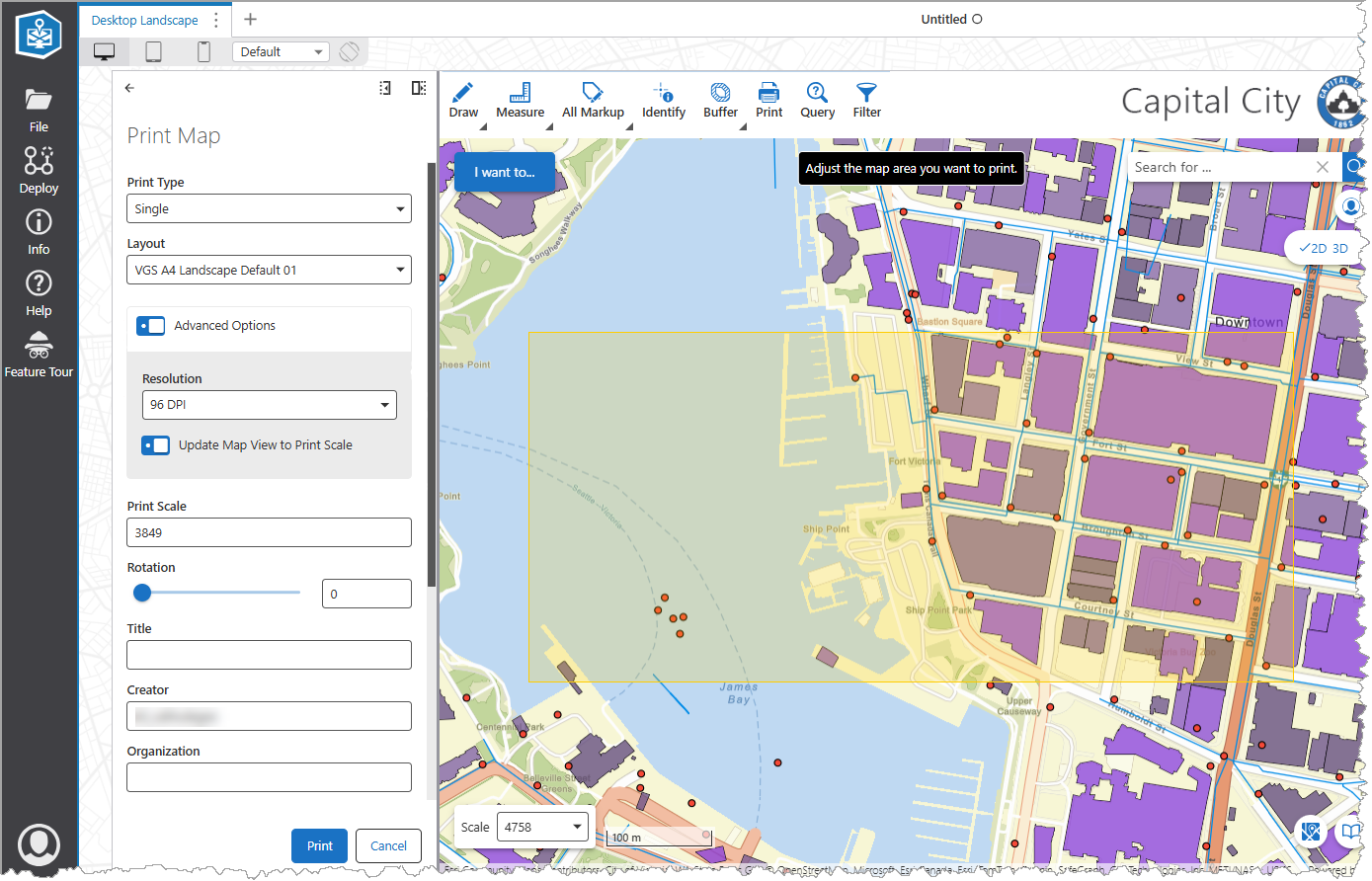

When enabled, Single is available as a Print Type in the print form. The print area window appears as a single square for you to define the area of the map to print. |
