Bands are horizontal or vertical sections in a print template. For information about bands, see Bands.

This topic describes how to perform the following actions:

▪Add a Band

▪Select a Band

▪Collapse and Expand Bands

▪Delete a Band

For more information on how to configure specific band properties, see Band Reference.

Add a Band

To add a band, select the print layout, open the Print Template Explorer and expand Print Template. Click the tool for the type of band you want to add. For information about the different types of bands, see Band Reference.

When a band is empty ( contains no controls or content), it is omitted from the report output.

Select a Band

Use any of the following methods to select a band:

▪Select the band using the in the Properties panel .

▪Select the band in Print Layout Explorer .

▪Select the band in the Layout.

Collapse and Expand Bands

You can collapse bands in Print Designer so they take up less space.

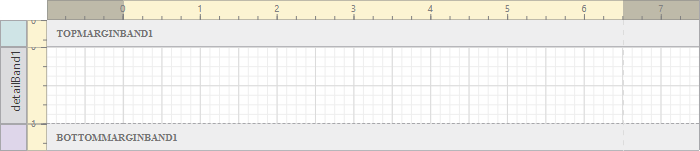

Top Margin and Bottom Margin bands collapsed in Print Designer

To collapse a band, click the band twice. Click again to expand the band.

Delete a Band

Use either of the following methods to delete a band:

▪Select the band and press Delete on your keyboard

▪Select the band and click Delete in the Print Layout Explorer.

Deleting a band deletes the controls in the band.
